Name: Animal Portable Full Digital Veterinary Diagnostic Equine Ultrasound Machine
SKU: 3803
Availability: InStock

Animal Portable Full Digital Veterinary Diagnostic Equine Ultrasound Machine

$2,800.00

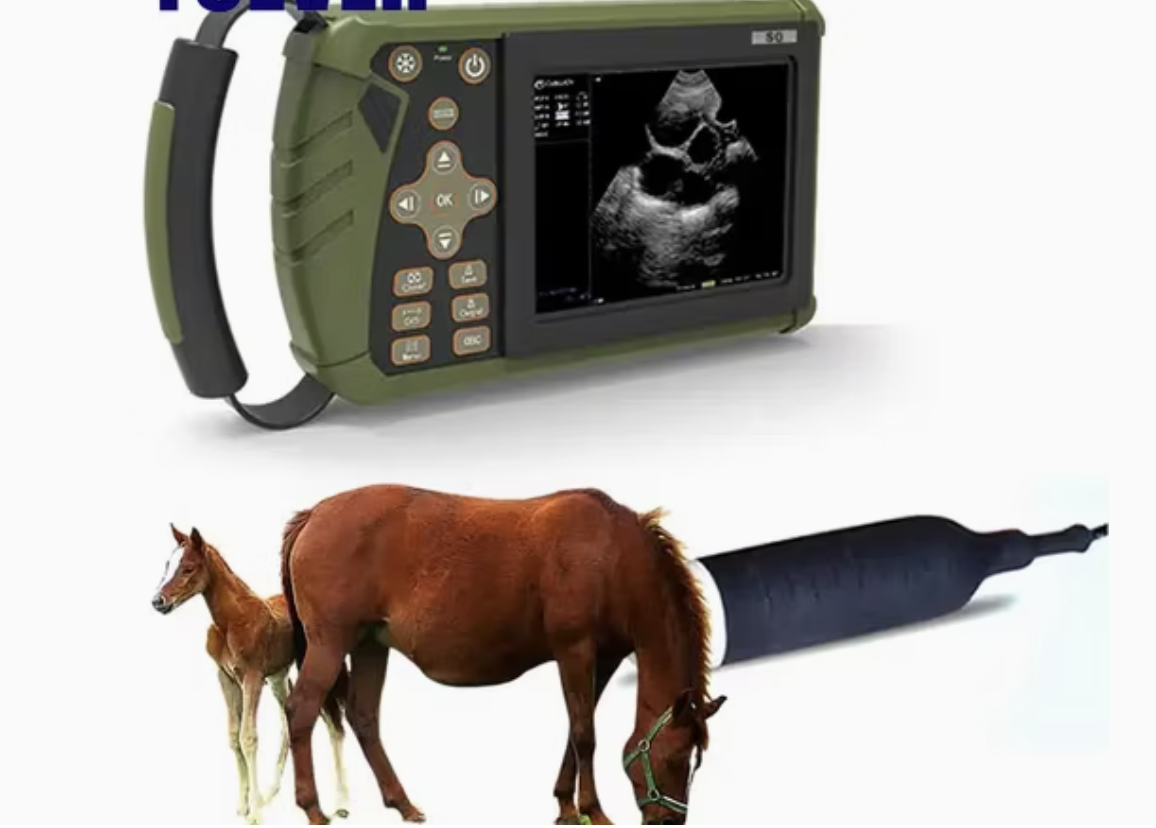

Portable Veterinary Equine Ultrasound Machine – Full Digital Diagnostic Imaging
Improve animal care with this lightweight, portable ultrasound machine designed for veterinarians, equine clinics, and farm use. This full digital veterinary diagnostic tool provides high-resolution imaging for accurate and fast diagnoses in horses, livestock, and small animals. Ideal for pregnancy checks, tendon scans, and abdominal imaging. Easy to operate, durable, and perfect for field or clinic use.

Description

1. Perfect Ergonomic Design

Compact, sophisticated, portable 5.6-inch LED display. Lightweight body Soft switching on/off, User-friendly operation interface, Simple and beautiful operation panel, Fast, convenient, and flexible touch-type keyboard operation

2. Advanced Technology and Function

Advanced digital signal processing technology, Leading digital beam former technology, NC dynamic frequency scanning technology, Real-time point by point dynamic focusing reception technology, Real-time dynamic aperture imaging

3. Powerful System Functions

Display mode: B, B + B HD video playback Image storage function Parameters optimization and pre-set Screen protection to extend equipment life effectively Suitable for veterinary use, can be used for diagnosis and measurement of cattle, horses, sheep and other large animals as well as cats, dogs and other pets in abdomen, obstetrics and other subjects Applications measurement: Swine: HLA, SLA Cattle: CTD, CHL, CCRL Dog: HD, BD, GSD, CRL Sheep: STD, SHD, SCRL Equine: EEGD, ECD, ESD, EBD Cat: HD, BD

4. Excellent Human-Computer Interaction

Comfortable handheld imaging, ultra-lightweight, easy to carry. High-resolution LED display to improve diagnostic accuracy. USB and TF card ports are for convenient and fast image storage and playback. Integrated long-life lithium battery ensures long power outages check, AC and DC dual-use, Real-time dynamic beam apodization

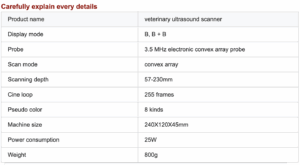

5. Technical Parameters

Focus: three sections, electronic focus, and support point by point-by-point focus. Gain adjustment: main gain, near and far field adjustment can reach 255 15 levels of contrast and brightness adjustment. Frame correlation:

15 adjustable Probe: 3.5 MHz electronic convex array probe Scan mode: convex array Scanning depth: 57-230mm, 15 levels adjustable Cine loop: 255 frames Built-in battery: Rechargeable lithium-ion battery, imported 2600mAh standard batteries scan sustain for more than 4 working hours Display mode: B, B + B Gray: 256 levels Pseudo color: 8 kinds Image magnification: 15 levels magnification Screen size: 5.6-inch high-definition LED screen Measurements: distance, perimeter, area, volume, gestational age Image processing: up / down, left / right flip, pseudo color processing, frame correlation, focus conversion Gain regulation: Near field, far field, main gain dynamic adjustable continuously Interfaces: Mini USB interface, TF card interface Machine size: 240X120X45mm P ower consumption: 25W Weight: 800g

Standard configuration:

machine (including a lithium-ion battery) 3.5MHz electronic convex array probe User’s Manual Adapter 8G TF memory card

Optional:

7.5MHz high-frequency linear array probe, 6.5MHz rectal probe, 7.5MHz back fat probe, 5.0MHz micro convex probe, Lithium-ion battery, Car adapter, External charger, Horseshoe converter.
